VB12F-02 - TECVAL,S.L., 2021 all rights reserved.
VB-12F

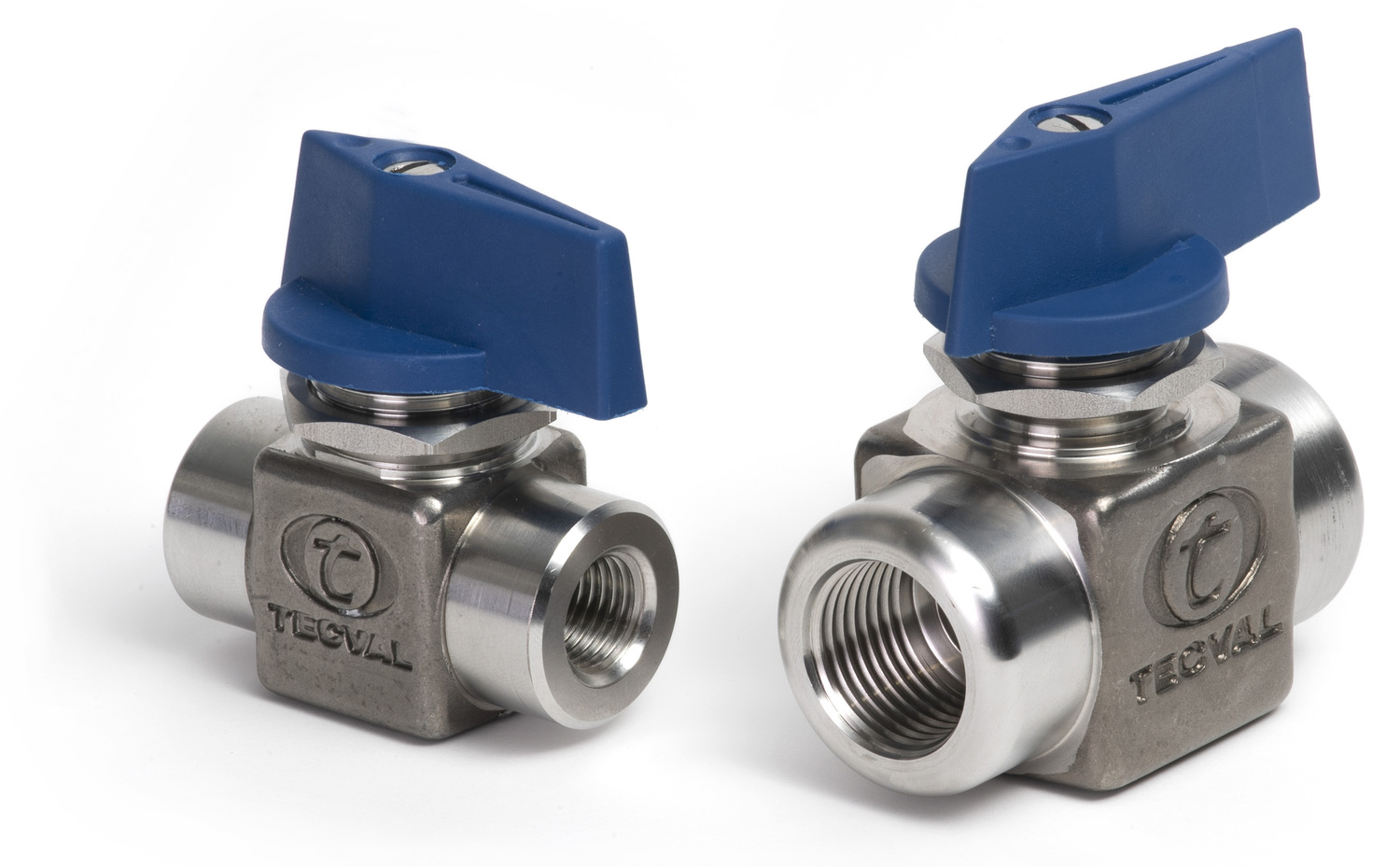

2-Pieces Forged Ball Valve
Working Pressures: 100 bar (1500 PSI)

TECVAL VB-12F 2-Pieces Ball Valve is designed with a Forged Body that reduces the surface porosity and closes up internal cavities. Resulting in a mechanical stronger and more durable product specially in high corrosive environments.

Features


Compact design with forged body.

Full bore.

Panel Nut.

No ejectable stem design.

No maintenance required.

Anti-leak stem with double o-ring seal.

100% tested.

Options


O-ring seals Nitrile.  B

Degreased for oxygen service.  D

O-ring seals Neopren.  N

Prepared for a quick automation.  T

O-ring seals FPM.  VI

Handle safety lockout.  W
Technical data
Max. Pressure 100 bar (1500 PSI) at 38ºC (100ºF)
Temperatures -20ºC/200ºC (-4ºF/392ºF)
Dimensions 1/4" 3/8" 1/2" 1/4"OD 3/8"OD 1/2"OD 3/4"OD 6mm 8mm 10mm 12mm
ConnectionTHRDTHRDTHRDO.D.O.D.O.D.O.D.O.D.O.D.O.D.O.D.
A5050627474909074747490
B2626332626333326262633
C1414171414171714141417
D4545524545525245454552
E2525313737454537373745
F3030403030404030303040
Orifice Size 8 8 13 5 7,5 10,3 13 5 6 7 10,5
Maximum Cv 4 4 11 1,5 4 7,5 13,5 1,2 2,5 3,5 8
Order codes
BSP(ISO 228-1)603160516071--------
NPT(ANSI B1.20.1)603260526072--------
TecvaLOK---60396059607960896919693969596989

* Dimensions in mm
Materials
PartAISI-316L  A4 SuperDuplex  AS
1 Handle screwAISI-316 (1.4401)AISI-316 (1.4401)
2 HandleBlue polyamidBlue polyamid
3 Panel nutAISI-316L (1.4404)AISI-316L (1.4404)
4 Stem o-ringEPDMEPDM
5 Stem bearingDelrinDelrin
6 StemAISI-316L (1.4404)Superduplex (1.4410/ 1.4501)
7 BodyAISI-316L (1.4404)Superduplex (1.4410/ 1.4501)
8 BallAISI-316L (1.4404)Superduplex (1.4410/ 1.4501)
9 SeatP.T.F.E.P.T.F.E.
10 O-ringEPDMEPDM
11 End connectionAISI-316L (1.4404)Superduplex (1.4410/ 1.4501)
Special alloys

We can manufacture in different materials:

BRASS (2.0402)  LA  , AISI-904L (1.4539)  A9  , 254-SMO (1.4547)  AV  , Alloy 400 (2.4360)  MO  , Alloy 625 (2.4856)  IN  , Alloy 825 (2.4858)  CO  , Titanio Gr.2 (3.7034)  TI  , Hastelloy C-276 (2.4819)  HA

Please address your inquiry to our Technical Department.



Ordering information

References are formed by three parts:

 Valve Code  Look for it in the order codes chart on the previous page.
 Option/s  If required, add the code/s from the options section on the previous page (in alphabetical order).
 Material  Look for the code on the materials chart.



Example valve with 2 options:

Ball valve VB-12F 1/2" NPT Superduplex with Neopren seals and Degreased:
 6072   D   N   AS  The reference required to place the order is 6072DNAS .




Actuators

Upon request, ball valves VB-12F can be delivered with:

  • Pneumatic actuators: either double acting (DA) or spring return (SR).
  • Electrical actuators: of 24V, 115V and 230V can also be assembled.

Tests

100% tested in accordance to API STANDARD 598, each valve is tested to check the leakage in the seats and packing. Upon request, the corresponding materials and test certificates can be delivered with the valve.


Maintenance

Valves with long no-working period may have a harder initial operating torque. Designed to be operated in a fully open or fully closed position.

VB20-04 - TECVAL,S.L., 2021 all rights reserved.
VB-20
3-Pieces Forged Ball Valve
Working Pressures: 100 | 200 bar (1500 | 2900 PSI)

Tecval VB-20 3-Pieces Ball Valve is a Forged Body design. The forging process reduces the surface porosity and closes up internal cavities. The result is mechanical stronger and more durable product, especially suitable for working in high corrosive environment. They are manufactured under ASME B16.34.

Features


Unique design Forged Body and Flanges.

Full bore (FB) or Standard bore (SB).

Compensation springs on packing stem.

Three pieces to allow a full disassembling.

Easy cleaning and maintenance.

No ejectable stem design.

316 SS handle to reduce the risk of corrosion.

100% tested.

Options


Flanged ends.

Antistatic device.  A

O-ring seals Nitrile.  B

Male-Female (MxF) end connections.  C

Degreased for oxygen service.  D

PEEK seats for high pressures 200bar (2900PSI).  I

Male-Male (MxM) end connections.  J

O-ring seals Neopren.  N

Prepared for a quick automation (ISO5211).  T

O-ring seals FPM.  VI

Handle safety lockout.  W
Technical data
Max. Pressure TFM Seats up to 100 bar (1500 PSI) & 150 bar (2200 PSI) PEEK Seats up to 200 bar (2900 PSI) only to 1"(FB)
Temperatures -20ºC/200ºC (-4ºF/392ºF)
Dimensions 1/2"(FB) 3/4"(SB) 3/4"(FB) 1"(SB) 1"(FB) 11/2"(SB) 11/2"(FB) 2"(SB)
A72728888--125125
B51516868--106106
C26263434--5353
D68686969--111111
E153153153153--236236
Orifice Size 15 15 20 20 25 30 38 38
Maximum Cv 12 12 30 30 56 80 118 118
Order codes
BSP60616081609161016111614161516201
SW60636083609361036113614361536203
BW Sch.40s60646084609461046114614461546204
NPT60626082609261026112614261526202
VIC Grooved60606080609061006110614061506200

* Dimensions in mm
Materials
PartAISI-316L  A4 Duplex  AD SuperDuplex  AS Special alloys
1 BodyAISI-316L (1.4404)Duplex (1.4462)Superduplex (1.4410/ 1.4501)Special alloy
2 StemAISI-316L (1.4404)Superduplex (1.4410/ 1.4501)Superduplex (1.4410/ 1.4501)Special alloy
3 Stem bearingPEEKPEEKPEEKPEEK
4 GlandAISI-316L (1.4404)AISI-316L (1.4404)AISI-316L (1.4404)AISI-316L (1.4404)
5 PackingP.T.F.E.P.T.F.E.P.T.F.E.P.T.F.E.
6 Nut HandleAISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)
7 HandleAISI-316L (1.4404)AISI-316L (1.4404)AISI-316L (1.4404)AISI-316L (1.4404)
8 End connectionAISI-316L (1.4404)Duplex (1.4462)Superduplex (1.4410/ 1.4501)Special alloy
9 ScrewAISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)
10 NutAISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)
11 Grower washerAISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)
12 Spring washerAISI-301 (1.4310)AISI-301 (1.4310)AISI-301 (1.4310)AISI-301 (1.4310)
13 Handle GrowerAISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)
14 BallAISI-316L (1.4404)Duplex (1.4462)Superduplex (1.4410/ 1.4501)Special alloy
15 SeatTFMTFMTFMTFM
16 O-ringEPDMEPDMEPDMEPDM
Special alloys

We can manufacture in:

AISI-316Ti (1.4571)  A6  , AISI-904L (1.4539)  A9  , 254-SMO (1.4547)  AV  , Alloy 400 (2.4360)  MO  , Alloy 625 (2.4856)  IN  , Alloy 825 (2.4858)  CO  , Titanium Gr.2 (3.7034)  TI  , Hastelloy C-276 (2.4819)  HA

Please address your inquiry to our Technical Department.



Pressure/Temperature Service Ratings

Pressure Ratings in bar for standard combinations bodies and seats.

T(ºC)

 AISI-316L+TFM  AISI316L+PEEK

Superduplex+TFM

Duplex+TFM

 Superduplex+PEEK

Duplex+PEEK

-20 135,0 206,8  135,0   228,6
0 135,0  206,8  135,0  228,6
50 135,0  200,1  135,0  228,6
100 97,6  173,9  97,6  223,3
150 62,8  157,0  61,6  209,4
200 22,8  145,8  22,8  198,2
Ordering information

References are formed by three parts:

 Valve Code  Look for it in the order codes chart on the previous page.
 Option/s  If required, add the code/s from the options section on the previous page (in alphabetical order).
 Material  Look for the code on the materials chart.

Example of ball valve VB-20 with two options:

Ball valve VB-20 1"NPT (SB) Superduplex with handle safety lockout and FPM seals:
 6102   VI   W   AS  The reference required to place the order is 6102VIWAS .




Actuators

Upon request, ball valves VB-20 can be delivered with:

  • Pneumatic actuators: either double acting (DA) or spring return (SR).
  • Electrical actuators: of 24V, 115V and 230V can also be assembled.

For detailed information please consult the sections on Electric and Pneumatic Actuators.


Tests

100% valves are tested in accordance to API STANDARD 598, each valve is tested to check the leakage in the seats and packing. However they can also be tested under other standards such as EN12266. Upon request, the corresponding materials (EN10204 3.1) and test certificates can be delivered with the valve.


Maintenance

Valves with long no-working period may have a harder initial operating torque. Are designed to be operated in a fully open or fully closed position.

VB15-11 - TECVAL,S.L., 2021 all rights reserved.
VB-15
2-Way 3-Pieces Ball Valve (FxF)
Working Pressures: 100 | 210 bar (1500 | 3000 PSI)

With a smooth and safe movement, VB-15 TECVAL 3-Pieces ball valve is designed to work with liquids or gases under either high pressure or moderate vacuum service. To be used in numerous applications, they are manufactured in several sizes, connections and alloys.

Features


Full bore (FB) or Standard bore (SB).

Temperature range -20ºC/200ºC (-4ºF/392ºF)

Standard reinforced PTFE seats 105 bar (1500PSI)

Three pieces to allow a full disassembling.

Smooth operating.

Easy cleaning and maintenance.

No ejectable stem design.

Anti-leak stem with double o-ring seal.

316 SS handle to reduce the risk of corrosion.

100% tested.

Options


Flanged end connections.

O-ring seals Nitrile.  B

Male-Female (MxF) end connections.  C

Degreased for oxygen service.  D

PEEK seats for high pressures 210bar (3000PSI).  I

Male-Male (MxM) end connections.  J

O-ring seals Neoprene.  N

VIC Grooved end connections.  O

Prepared for a quick automation (ISO 5211).  T

O-ring seals FPM.  VI

Handle safety lockout.  W
Technical data (Dimensions in mm)
Max. Pressure Standard PTFE Seats up to 105 bar (1500 PSI)PEEK Seats up to 210 bar (3000 PSI)
Temperatures -20ºC/200ºC (-4ºF/392ºF)
Dimensions 3/8" 1/2" 1/2" 3/4" 3/4" 1" 1" 11/4" 11/4" 11/2" 11/2" 2" 2" 21/2"
BSP Code39043708390837123912371639163720390037243920372839243732
NPT Code39053709390937133913371739173721390137253921372939253733
SW Code39063710391037143914371839183722390237263922373039263734
BW Sch.40s Code39073711391137153915371939193723390337273923373139273735
A120120120120120120170170170170220220220220
B555557576060707075759090100100
L808080809090100100115115125125145145
Orifice Size 12 12 15 15 20 20 25 25 32 32 40 40 50 50
Maximum Cv 8 8 12 12 30 30 56 56 80 80 118 118 238 238
Materials
PartAISI-316L  A4 Duplex  AD SuperDuplex  AS Special alloys
1 Handle screwAISI-316L (1.4404)AISI-316L (1.4404)AISI-316L (1.4404)AISI-316L (1.4404)
2 Handle washerAISI-316L (1.4404)AISI-316L (1.4404)AISI-316L (1.4404)AISI-316L (1.4404)
3 HandleAISI-316L (1.4404)AISI-316L (1.4404)AISI-316L (1.4404)AISI-316L (1.4404)
4 Stop PinAISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)
5 StemAISI-316L (1.4404)Duplex (1.4462)Superduplex (1.4410/ 1.4501)Special alloy
6 Stem o-ringEPDMEPDMEPDMEPDM
7 Stem bearingDelrinDelrinDelrinDelrin
8 BallAISI-316L (1.4404)Duplex (1.4462)Superduplex (1.4410/ 1.4501)Special alloy
9 SeatReinforced PTFEReinforced PTFEReinforced PTFEReinforced PTFE
10 Seat carrierAISI-316L (1.4404)Duplex (1.4462)Superduplex (1.4410/ 1.4501)Special alloy
11 Seat o-ringEPDMEPDMEPDMEPDM
12 Body o-ringEPDMEPDMEPDMEPDM
13 End connectionAISI-316L (1.4404)Duplex (1.4462)Superduplex (1.4410/ 1.4501)Special alloy
14 BodyAISI-316L (1.4404)Duplex (1.4462)Superduplex (1.4410/ 1.4501)Special alloy
15 Grower WasherAISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)
16 NutAISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)
17 ScrewAISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)
Special alloys

Manufactured in AISI-316Ti (1.4571)  A6 , AISI-904L (1.4539)  A9 , 254-SMO (1.4547)  AV , Alloy 400 (2.4360)  MO , Alloy 625 (2.4856)  IN , Alloy 825 (2.4858)  CO , Titanium Gr.2 (3.7034)  TI , Hastelloy C-276 (2.4819)  HA .

Ordering information

References are formed by three parts:

 Valve Code  Look for it in the order codes chart on the previous page.
 Option/s  If required, add the code/s from the options section on the previous page (in alphabetical order).
 Material  Look for the code on the materials chart.

An example of valve with one option:

Ball valve VB-15 1/2"SW bore 15mm SuperDuplex with PEEK seats:
 3910   I   AS  The reference required to place the order is 3910IAS.


Actuators

Upon request, ball valves VB-15 can be delivered with pneumatic actuators, either double acting or spring return. The actuators can be worked by standarised or bottled air.
Electrical actuators of 24V, 115V and 230V can also be assembled.


Tests

100% tested in accordance to API STANDARD 598, each valve is tested to check the leakage in the seats and packing. Upon request, the corresponding materials and test certificates can be delivered with the valve.


Maintenance

Valves with long no-working period may have a harder initial operating torque. Are designed to be operated in a fully open or fully closed position.

VB60-08 - TECVAL,S.L., 2021 all rights reserved.
VB-60
2-Way 3-Pieces Full(FB) or Standard(SB) Bore Floating Ball Valve
Working Pressure 100 bar (1500 PSI)

With a smooth and safe movement, VB-60 TECVAL floating ball valve is designed to work with liquids under either high pressure or moderate vacuum service. To be used in numerous applications.

Features


Floating ball.

Three pieces to allow a full disassembling.

Full Bore (FB) or Standard Bore (SB).

Smooth operating.

Easy cleaning and maintenance.

No ejectable stem design.

Anti-leak stem with double o-ring seal.

100% tested.

Options


 Flanged connections.

O-ring seals Nitrile.  B

O-ring seals Neopren.  N

VIC Grooved end connections.  O

Prepared for a quick automation (ISO 5211).  T

O-ring seals FPM.  VI

Handle safety lockout.  W
Technical data
Max. Pressure 100 bar (1500 PSI)
Temperatures -20ºC/200ºC (-4ºF/392ºF)
Dimensions 21/2"(FB) 3"(SB) 3"(FB) 4"(SB) 4"(FB)
A600/2600/2600/2600/2600/2
B160160175175190
C8080100100110
D165165200200230
L200200230230265
Orifice Size 65 65 80 80 100
Maximum Cv 340 340 700 700 850
Order codes
SW25002505251025152520
BW Sch.40s25012506251125162521
BSP25022507251225172522
NPT25032508251325182523

* Dimensions in mm
Materials
PartAISI-316L  A4 Duplex  AD SuperDuplex  AS Special alloys
1 Set screwAISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)
2 Id. platePVCPVCPVCPVC
3 HandleAISI-316L (1.4404)AISI-316L (1.4404)AISI-316L (1.4404)AISI-316L (1.4404)
4 Stop PinAISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)
5 StemAISI-316L (1.4404)Duplex (1.4462)Superduplex (1.4410/ 1.4501)Special alloy
6 Stem o-ringEPDMEPDMEPDMEPDM
7 Stem bearingDelrinDelrinDelrinDelrin
8 NutAISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)
9 StudAISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)
10 Seat o-ringEPDMEPDMEPDMEPDM
11 Seat carrierAISI-316L (1.4404)Duplex (1.4462)Superduplex (1.4410/ 1.4501)Special alloy
12 SeatReinforced PTFEReinforced PTFEReinforced PTFEReinforced PTFE
13 BallAISI-316L (1.4404)Duplex (1.4462)Superduplex (1.4410/ 1.4501)Special alloy
14 End connectionAISI-316L (1.4404)Duplex (1.4462)Superduplex (1.4410/ 1.4501)Special alloy
15 Body o-ringEPDMEPDMEPDMEPDM
16 BodyAISI-316L (1.4404)Duplex (1.4462)Superduplex (1.4410/ 1.4501)Special alloy
Special alloys

AISI-316Ti (1.4571)  A6  , AISI-904L (1.4539)  A9  , 254-SMO (1.4547)  AV  , Alloy 400 (2.4360)  MO  , Alloy 625 (2.4856)  IN  , Alloy 825 (2.4858)  CO  , Titanium Gr.2 (3.7034)  TI  , Hastelloy C-276 (2.4819)  HA  .

Ordering information

References are formed by three parts:

 Valve Code  Look for it in the order codes chart on the previous page.
 Option/s  If required, add the code/s from the options section on the previous page (in alphabetical order).
 Material  Look for the code on the materials chart.



Example:

Full Bore Floating Ball Valve VB-60 3"SW AISI-316L with FPM seals:
 2510  VI  A4  The reference required to place the order is 2510VIA4.






Actuators

Upon request, ball valves VB-60 can be delivered with pneumatic actuators, either double acting or spring return. The actuators can be worked by standarised or bottled air.
Electrical actuators of 24V, 115V and 230V can also be assembled.


Tests

100% tested in accordance to API STANDARD 598. Each valve is tested to check the leakage in the seats and packing. Upon request, the corresponding materials and test certificates can be delivered with the valve.


Maintenance

Our VB-60 valves are designed to be operated in a fully open or fully closed position.

Valves with long no-working period may have a harder initial operating torque.

VB65-11 - TECVAL,S.L., 2021 all rights reserved.
VB-65
2-Way 3-Pieces Full(FB) or Standard(SB) Bore Trunnion Ball Valve
Working Pressure 160 bar (2286 PSI)

TECVAL VB-65 trunnion ball valves are designed to work with liquids under either high pressure or moderate vacuum service. Due to their trunnion solid design, these valves withstand extreme service conditions where the strongest features are required. To be used in numerous applications, they are manufactured in several sizes, connections and alloys.

Features


Trunnion ball.

Three pieces to allow a full disassembling.

Full Bore (FB) or Standard Bore (SB).

Smooth operating.

Easy cleaning and maintenance.

No ejectable stem design.

Anti-leak stem with double o-ring seal.

100% tested.

Options


Flanged connections.

O-ring seals Nitrile.  B

O-ring seals Neopren.  N

VIC Grooved end connections.  O

Prepared for a quick automation (ISO 5211).  T

O-ring seals FPM.  VI

Handle safety lockout.  W
Technical data
Max. Pressure 160 bar (2286 PSI)
Temperatures -20ºC/200ºC (-4ºF/392ºF)
Dimensions 21/2"(FB) 3"(RB) 3"(FB) 4"(RB) 4"(FB)
A210210245245265
B165165200200230
C9090105105120
D160160195195210
E600/2600/2600/2600/2600/2
Orifice Size 65 65 80 80 100
Maximum Cv 340 340 700 700 850
Order codes
BSP35023507351235173522
NPT35033508351335183523
SW35003505351035153520
BW Sch.40s35013506351135163521

* Dimensions in mm
Materials
PartAISI-316L  A4 SuperDuplex  AS Special alloys
1 HandleAISI-316L (1.4404)AISI-316L (1.4404)AISI-316L (1.4404)
2 Id. plaquePVCPVCPVC
3 Set screwAISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)
4 Trunnion StemAISI-316L (1.4404)Superduplex (1.4410/ 1.4501)Special alloy
5 Trunnion ScrewAISI-316L (1.4404)AISI-316L (1.4404)AISI-316L (1.4404)
6 Trunnion O-ringEPDMEPDMEPDM
7 Ball BearingPEEKPEEKPEEK
8 Stem o-ringEPDMEPDMEPDM
9 Bearing washerPEEKPEEKPEEK
10 Stem bearingDelrinDelrinDelrin
11 StemAISI-316L (1.4404)Superduplex (1.4410/ 1.4501)Special alloy
12 NutAISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)
13 ScrewAISI-316 (1.4401)AISI-316 (1.4401)AISI-316 (1.4401)
14 Seat O-ringEPDMEPDMEPDM
15 Seat carrierAISI-316L (1.4404)Superduplex (1.4410/ 1.4501)Special alloy
16 SeatReinforced PTFEReinforced PTFEReinforced PTFE
17 BallAISI-316L (1.4404)Superduplex (1.4410/ 1.4501)Special alloy
18 SpringStainless steel CoatedStainless Steel CoatedStainless steel Coated
19 End connectionAISI-316L (1.4404)Superduplex (1.4410/ 1.4501)Special alloy
20 Body o-ringEPDMEPDMEPDM
21 BodyAISI-316L (1.4404)Superduplex (1.4410/ 1.4501)Special alloy
22 Trunnion ballAISI-316L (1.4404)Superduplex (1.4410/ 1.4501)Special alloy
Special alloys

AISI-316Ti (1.4571) A6 , AISI-904L (1.4539) A9 , Duplex (1.4462) AD , 254-SMO (1.4547) AV , Alloy 400 (2.4360) MO , Alloy 625 (2.4856) IN , Alloy 825 (2.4858) CO , Titanium Gr.2 (3.7034)  TI  , Hastelloy C-276 (2.4819)  HA  .

Ordering information

References are formed by three parts:
 Valve Code  Look for it in the order codes chart on the previous page.
 Option/s  If required, add the code/s from the options section on the previous page (in alphabetical order).
 Material  Look for the code on the materials chart.



Example valve VB-65 with one option:

Full Bore Trunnion Ball Valve VB-65(FB) 3"NPT SuperDuplex with Nitrile seals:

 3513   B   AS  The reference required to place the order is 3513BAS.


Actuators

Upon request, ball valves VB-65 can be delivered with pneumatic actuators, either double acting or spring return. The actuators can be worked by standarised or bottled air.
Electrical actuators of 24V, 115V and 230V can also be assembled.


Tests

100% tested in accordance to API STANDARD 598. Each valve is tested to check the leakage in the seats and packing. Upon request, the corresponding materials and test certificates can be delivered with the valve.


Maintenance

Our VB-65 valves are designed to be operated in a fully open or fully closed position.
Valves with long no-working period may have a harder initial operating torque.

SELECTOR-07 - TECVAL,S.L., 2021 all rights reserved.
SELECTOR
2 & 3-Way Ball Valve for High Pressures (FxF)
Working Pressures: 100 | 210 bar (1500 | 3000 PSI)

TECVAL two and three-way SELECTOR ball valves are designed to allow a quick opening and close of the flow, and obtain a fast commutation and distribution. Are to be operated in a fully open or fully closed position. The superficial micro-finish of the trunnion-ball ensures a perfect sealing for both liquid and gas under high pressure or moderate vacuum service.

Features


Standard reinforced PTFE seats 100 bar (1500PSI).

Light and compact design.

No ejectable stem design.

Anti-leak stem with double o-ring seal.

Two panel nuts for a better fixing.

100% tested.

Options


O-ring seals Nitrile.  B

Degreased for oxygen service.  D

O-ring seals EPDM.  E

Kel-F seats for high pressures 210bar (3000PSI).  I

O-ring seals Neopren.  N

Prepared for a quick automation.  T

Two-way,straight flow.  U

Two-way,angle flow.  W
Technical data
Max. Pressure Standard PTFE Seats up to 100 bar (1500 PSI) KEL-F Seats up to 210 bar (3000 PSI)
Temperatures -20ºC/200ºC (-4ºF/392ºF)
Dimensions 1/8" 1/4" 3/8" M18x100(MxM)
A (2VA/3V)38383850
A (2V)25252525
B38383850
C (2V/3V)38383850
C (2VA)25252525
Orifice Size 3.5 3.5 3.5 3.5
Maximum Cv 0.5 0.5 0.5 0.5
Order codes
BSP400240084017-
NPT400540114020-
M18x100---4014

* Dimensions in mm
Materials
PartAISI-316L  A4 Special alloys
1 Set screwAISI-316 (1.4401)AISI-316 (1.4401)
2 HandleBlue polyamidBlue polyamid
3 Panel nutAISI-316L (1.4404)AISI-316L (1.4404)
4 BodyAISI-316L (1.4404)Special alloy
5 Stem bearingDelrinDelrin
6 StemAISI-316L (1.4404)Special alloy
7 O-ringFPMFPM
8 BallAISI-316L (1.4404)Special alloy
9 O-ringFPMFPM
10 End connectionAISI-316L (1.4404)Special alloy
11 SeatP.T.F.E.P.T.F.E.
12 Seat carrierAISI-316L (1.4404)Special alloy
13 Seat o-ringFPMFPM
14 Back seatP.T.F.E.P.T.F.E.
15 WasherAISI-316L (1.4404)Special alloy
16 SpringSpecial alloySpecial alloy
17 End connectionAISI-316L (1.4404)Special alloy
Special alloys

Among the wide range of alloys existing, TECVAL has selected those considered by our customers as most suitable, which we stock to ensure a quick and effective supply. Whether you do not find the required alloy or need further information about our special alloys valves and fittings, please address your inquiry to our Technical Department.
AISI-316Ti (1.4571)  A6  , AISI-904L (1.4539)  A9  , Duplex (1.4462)  AD  , Superduplex (1.4410/1.4501)  AS  , 254-SMO (1.4547)  AV  , Titanium Gr.2 (3.7034)  TI  , Hastelloy C-276 (2.4819)  HA

Ordering information

References are formed by three parts:
 Valve Code  Look for it in the order codes chart on the previous page.
 Option/s  If required, add the code/s from the options section on the previous page (in alphabetical order)
 Material Look for the code on the materials chart.

Example of valve with one option:
SELECTOR valve 1/4"NPT AISI-316L degreased:
 4011   D   A4  The reference to place the order is 4011DA4

Tests

100% tested in accordance to API STANDARD 598, each valve is tested with Nitrogen to check the leakage in the seats and packing. Upon request, the corresponding materials and test certificates can be delivered with the valve.


  Packaging

All TECVAL valves are supplied packed in individual polyethilene airtight bags, which include the general features of the valve. End screw connections are protected with polyethilene caps. Everything is 100% recyclable.


C/Berlín, 1 Nave 4 - Pol.Can Torrella - 08233-VACARISSES - Barcelona - SPAIN | Tel: +34 938 280 055 | email: tecval@tecval.es
